    JBC CD-1SQF 120V Precision Station
    JBC CD-1SQF 120V Precision Station
    JBC-CD-1SQF

    JBC CD-1SQF 120V Precision Station

    Item # JBC-CD-1SQF

    JBC CD-1SQF 120V Precision Station
    * Prices are subject to change

    Product Overview

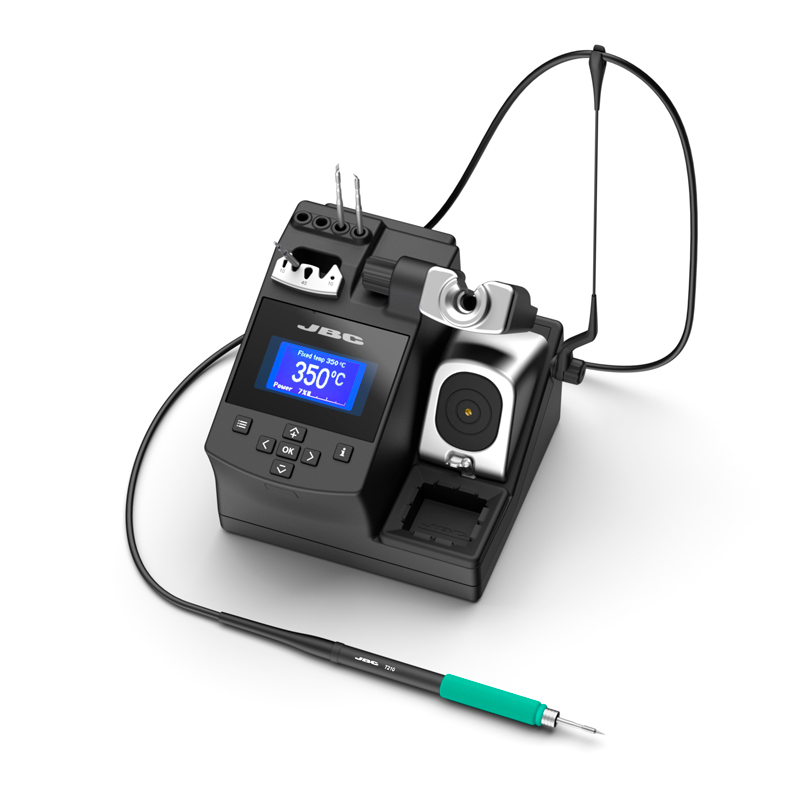

    JBC CD-1SQF 120V Precision station. The CD-SQ is a soldering station for precision electronic applications. It works with the JBC exclusive heating system and the intelligent sleep & hibernation features. Using the menu you can personalize over 20 parameters to help manage the soldering process. CD-1SQF features a USB connector to update software, create graphs and manage parameters from a PC.

    Specifications

    Selectable Temperature 90 to 450 ºC / 190 to 840 ºF
    CONNECTIVITY
    USB-B Software PC / Firmware update
    Equipotential bonding Open connection to EPA
    RJ12 Connector
    Earthing Fuse    		 F 1.25A
    ESD/EOS
    ESD safe
    Tip to ground vol./ resist.    		 Meets and exceed
    ANSI/ESD S20.20-2014 IPC J-STD-001F
    POWER SUPPLY
    Peak power 40 W - 23.5 V
    Ambient operating temp. 10 to 50 ºC / 50 to 122 ºF
    DIMENSIONS AND WEIGHT

    Brand JBC

    Shipping Policy


    SHIPPING: All orders are shipped F.O.B shipping point. Title to all goods shall pass to the customer when the customer pays in full for the materials. Risk of loss and/or damage to the goods shall be the responsibility of the customer when the goods leave the shipping point for delivery to the customer. Shortages must be claimed when shipment is received.

    SHIPPING METHODS: We ship via the following methods: UPS, FedEX and freight shipments. We offer the following shipping options: Same Day, Next Business Day, 2 Business Days, 3 Business Days, and 1-5 Business Days. Please call for international shipping quotes.

    Complete cleaning system with an antisplash membrane to keep the work area clean. Use the integrated wiper to remove excess solder from the tip. CD-SQ works with the lightest and ergonomic T210 Handpiece and the C210 cartridges.

    Product Composition

    • Control Unit
    • Tools: T210-A Precision Purpose Handle

    Other Specifications

    Brand JBC
    Case LxWxH x x
    Cube 0.5
    ESD / Anti-static No
    Industries Used

    Electronics
    Pallet TixHixQty x x
    Sell UOM LxWxH EA - x x
    Sterile No
    Weight 7
