ACL Staticide Dualmat™

  • Surface resistivity measures 106 – 108 ohms per square
  • Electricals are warranted for the lifetime of the mat
  • Compliant to ANSI / ESDA S20.20
  • Two ply .080″ (2mm) thickness
  • Static decay of .05 seconds
  • Embossed surface
  • Low outgassing; low VOC
  • UV additives provide color stability

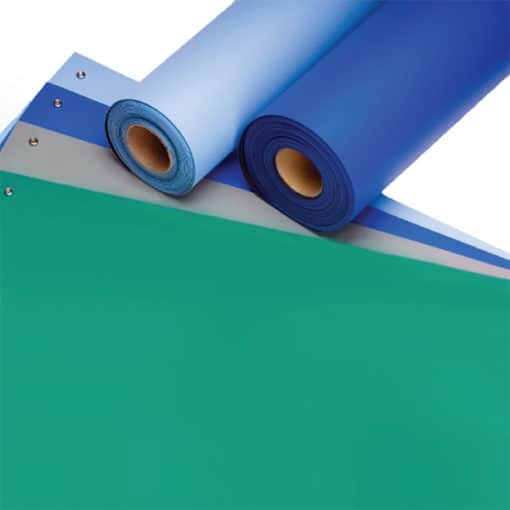

  • Available in four colors: light blue, dark gray, royal blue, and green
  • Rolls available in lengths of 40′ and widths of 24″, 30″, 36″ and 48″
  • Precut mats include two 10mm female snaps
  • Custom cut sizes available

Add to Quote

ACL Staticide DualmatTM Rolls feature 2-ply chemically cross-linked rubber material that is inherently dissipative on the top side and conductive on the bottom side. The material will not exudate, outgas, or lose its electrical properties. The soft textured surface offers comfortable protection against static discharge, parts slippage, and damage from UV lights. The durable material is resistant against solder, heat, and most common solvents.

Using no vinyl monomers or DOP, the DualmatTM ensures conformity to personal and environmental safety standards. Fully compliant to REACH, DualmatTM does not use candidates on the SvHC in its manufacture.

  • Embossed finish reduces glare and prevents parts from slipping
  • .080” (2mm) thickness allows mat to remain flat and prevents curled edges
  • .05 second decay time ensures rapid, safe static drain
  • 106 – 108 ohms, ohms per cm for RTT, RTG, and Vol R meets industry electrical specifications in all humidities
  • Durable surface withstands high temperatures, solder, flux, and harsh chemicals
  • Low out gassing and VOC are ideal for cleanrooms and other controlled environments
  • No vinyl monomers or DOP ensures conformity to personal and environmental safety standards
  • UV additives provide color stability and prevent fading

ACL Staticide Dualmat Spec Sheet

Product Code:ColorSizes:
Roll: 8085BR
Mat: 8085BM
Light Blue40’ rolls in widths of 24”, 30”, 36”, and 48”
Roll: 8185GR
Mat: 8185GM
Green40’ rolls in widths of 24”, 30”, 36”, and 48”
Roll: 8285RBR
Mat: 8285RBM
Royal Blue40’ rolls in widths of 24”, 30”, 36”, and 48”
Roll: 8385DGYR
Mat: 8385DGYM
Dark Gray40’ rolls in widths of 24”, 30”, 36”, and 48”

, , ,


, , ,
